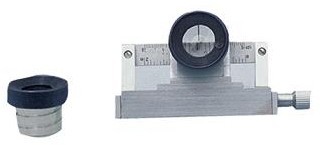

Fabric pick counter Used for testing the number of yarn in warp-wise or across warp of all kinds of fabrics in set length. Standards：GB/T4668；ISO7211.2 Enlarge the number of times：10.20 Range of scale：0~50mm

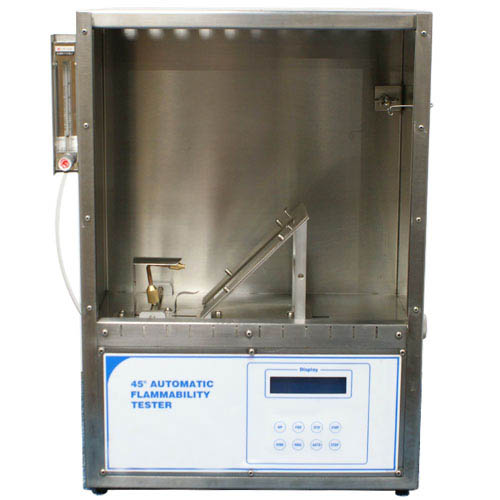

45 degree Automatic Flammability Tester The specimen rack provides support for the holders in which the specimens are mounted. Its angle of inclination is 450. The rack can be moved sideways to enable fabrics of different thickness to be set at the specified distance from the tip of the jet with the help of an adjusting screw. A built-in finger is provided to gauge this distance for setting it to the desired value. The Specimen holder consists of two matched stainless steel U shaped plates between which the test specimen can be held. The specimen holder sits over the specimen rack in a precisely determined position 450 inclination and is so positioned that the igniting flame strikes the specimen centrally and 6 mm above the bottom edge perpendicular to the face of the test specimen. Five such specimens holders are provided with the equipment. The ignition arrangement comprises of a jet mounted on a extension of the shaft of a syncroset motor such that it can be rotated into a position perpendicular to the surface of the fabric. The distance between the tip of the jet and the surface of the burner can be adjusted to 8 mm. When the tip of the jet is moved away from the specimen, the jet becomes vertical. The flame is produced at the tip of the jet by LPG Gas. The length of the flame is set to 16 mm when the jet is vertical with the help of a control valve and is measured with the help of built in gauge rod.

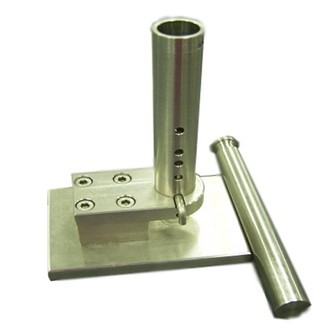

Button Impact Teste Button Impact Tester to determine the impact resistance of plastic sew-through flange buttons to a falling mass of 0.84kg (29.5 oz), released from a height of 67mm (2.625 inch) or other heights as required. Cracking, chipping or breakage constitutes failure. Weight: 4.1Kg Dimensions: 100 × 155 × 350mm (W × D × H) Standards: ASTM D 5171

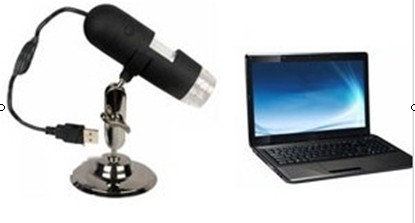

Digital Fabric Pick Counter Digital Fabric Pick Counter is used to determine the thread density of woven fabrics and loop density of knitted fabrics. Equipped with a portable high-precision camera to capture and magnify pictures of fabrics, the number of threads or loops on captured pictures can be counted easily on the screen of the computer by the software STANDARDS GB/T 4668 ISO 7211.2 ASTM D3775 l Magnification of the camera 20×~400× l Specimen Woven fabrics, knitted fabrics l Measuring direction Vertical/Horizontal l Counting direction Warp-wise/Weft-wise l Display mode Thread/10mm and thread/inch l Mode of storing results In text files

Salt Spray Tester/ Salt Fog Tester Corrosion Test Equipments/ Salt Fog Test Equipments The Salt Spray Chamber are specialized to test the performance of the products for its surface of various materials after treatment of corrosive protection by means of painting, coating, galvanizing, anodizing and of lubricant. Material: 1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius; 2) Laboratory closure with high impact acrylic sheet, 6 mm thick; 3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break; 4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best; 5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces Salt spray test NSS,ACSS laboratory 35℃±1℃ Saturated air drums 47℃±1℃ Corrosion test NSS.ACSS laboratory 50℃±1℃ Saturated air drums 63℃±1℃ Comply to international standards: CNS3627, 3885, 4159, 7669, 8886, JIS Do201, H8502, H8610, K5400, Z2371, ISO3768, 3769, 3770, 9227, ASTM B117, B268 Capacity: 110, 270, 480, 640L
