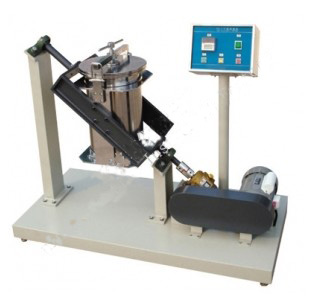

Dry Testing Machine SL-F30 It is used for testing external colour and size alteration of various textiles, knitting fabrics and hot-meltbonded linings after they were washed by organic solvent and alkali solvent. Standards FZ/T01083-1999, FZ/T01013-1991, FZ80007.3-1999, ISO3175.1-1:1998, ISO3175.1-2:1998 and so on . Working Pattern Continuous revolution or crawl by timing and readout by digital. Capacity of Washtubs 11.4L Speed 47±3r/min Revolving Axle Tilt Angle 50±1° Working Time 0-30min External Dimensions 1050x580x800mm Weight 100kg Power Source Ac220V , 50Hz

Detailed parameter: Measurement of the gloss of all kinds of non-metallic coatings. ●Measurement of the surface gloss of the non-metallic decorative material Reading Range GU 0～199 Indication Error GU ±2 Measuring Area mm2 36×18 Incidence Angle Deg. 60 Volume (L×W×H) mm3 130×40×80 Main Weight g 430

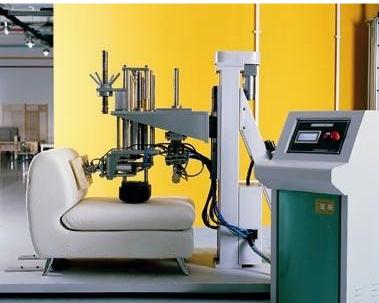

Sofa Durability Tester Detailed parameter: It is used to testing the sofa back, seat, arm’s durability. Use a loading with specified form, frequency to repeatedly load on seat, back and arm surface loading. This test method is to simulate everyday use, the sofa on the long-term repeatability of the load bearing capacity. The machine adopts PLC touch screen and the program control. Can all loading frequencies, loading control the intensity of programming. The most reasonable regulation structure. Relevant parameters: a) Seat load the module: 50kg 200mm diameter impact face R341mm b) On the back of load modules: 200mmx100mm c) Arm load modules: diameter 50m d) Counter weight: 70kg, diameter 350mm e) Loading frequency: 0.33Hz ~ 0.42Hz (20 ~ 25 times / min f) Loading the spacing between the back: 300mm. g) Loading arm angle: 45 degrees. Auxiliary equipment, including weight and seat height measuring device

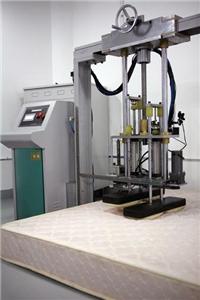

Mattress Durability Tester Purpose: it is suitable to all kinds spring soft mattress. Palm fiber mattress and soft foam mattresses and other polymeric materials reference to the relevant standards. This machine is suitable for mattress, mattress test is not sufficient. Theory: put 2 loading block on a certain height above on the mattress, Alternating free fall with Certain frequency. Make repeatly loading to matress, to test the mattress’s long-term repeatability of the load bearing capacity. Spring mattress: The spring and soft lining materials for the inner core material, that cover with fabric fabric or Ruanxi and other bedding materials.Spring coverage: a spring mattress on the sum of the maximum cross-sectional area measured with the mattress area percentage. Compression: a mattress pad in the horizontal surface of the force applied vertically downward, causing the mattress by the force along the direction of surface displacement.

Slip Type Life Tester It is used for testing fatique life of the slip type parts, such like caster,slip door,drawer. Testing terms:caster durability test,drawer slider testing,slip door durability testing. Maximum stroke 500mm Speed of 0.25m / s, adjustable PLC control text control Dimension (WxDxH) 134x60x124cm Power 1 ∮ AC 220V 50Hz 3A Air ≥ 6kgf/cm2 stable gas supply
