Leather Softness Tester The feature of this leather softness tester is precision, beauty, easy operation, easy maintenance and easy carry. Leather softness tester is applied to measure the softness of leather and animal skins in order to understand the softness and hardness is uniform or not in the same batch of leather, or the softness and hardness is difference or not in a single piece of soft leather Corresponding standard: According to the standard IULTCS. IUP 136 Applicable industry Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; Commodity inspection, arbitration and technical supervision departments. Technical parameters: Model: Hz-3002 Load: 530 ± 10g (drove by a small pneumatic valve ) Scale: 0.1 ~ 10mm Volume: 12 × 49 × 16cm Weight: 4kg Configuration: Standard testing ring = 20 mm, or = 25 mm each one

Din Abrasive Tester Din Abrasive Tester main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials. Main functions: This tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others. Corresponding standard: DIN-53516; ISO-4649; GB/T9867-88; Applicable industry: Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; Commodity inspection, arbitration and technical supervision departments. Technical parameters: Specimen Size: 16mm, thickness at least 6mm. Specimen Load: 10N 0.2N. Diameter of wear wheel: 150mm. Speed of wear wheel: 40 1RPM. Emery cloth Specification: 60 #, seam is less than 2mm. Testing Length: 40M (about 84 rotate). Horizontal displacement: 4.2mm / rotate. Machine Specifications Test-arm weight: 250 5 (g). Testing Load: 2.5N, 7.5N. Diameter abrasive wheel: 150 450L (mm). Emery cloth: 60 #, 425 473 1.5 (mm). Wheel Speed: 40 1RPM. Shift screw: 6 teeth / inch. Limit rotation: 85 rotate. Set rotation: 84 rotate (about 40M). Return form: Electric automatic reset. Drive Power: 40W; 1 / 30. Power: 220V 50Hz. Machine Dimensions: 600 330 420 (mm). Machine Weight: 75kg.

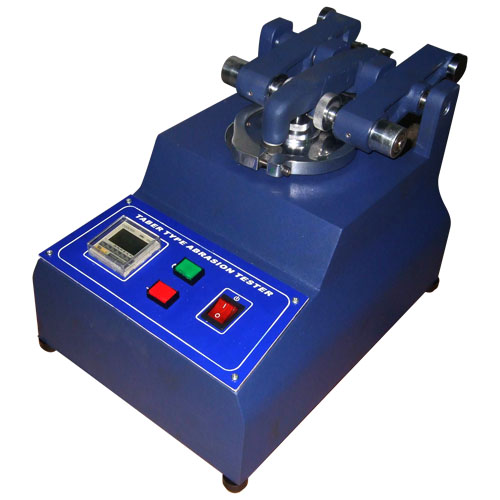

Taber Abrasion Tester This tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous material's, For the choice of grinding wheel models: H18, H22, CS17, S32, S33. Standards: DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470 Applicable industry: It is used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; Commodity inspection, arbitration, and technical supervision departments, The formula is: abrasive index formula: × 1000 Testing reference: Paint brick plywood plastic CS10 CS17 CS17 S32 S33 CS17 H18\H22 Machine Specifications: Specimen: 120 × 6.5 × 3mm Load: 250g, 500g, 1000g Counter: 6 digit electronic display, automatic shut down Testing Disk Speed: 0-70 Adjustable Machine Dimensions: 30 × 43 × 30cm Machine Weight: 30kg Attachment: A wrench, a group of grinding wheel, Fama (250g, 500g, 750g) each 2 PCS. Vacuum cleaner 1. Power: AC220V/50Hz

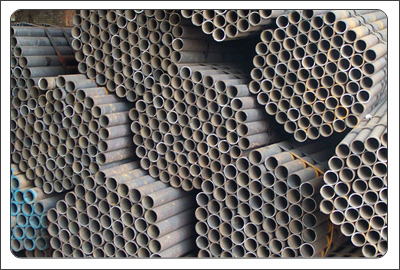

Our company manufactures various kinds of diameter (89mm-1220mm)and wall thickness(2mm-60mm).Not only base on ISO9001-2000 series, but also passed the certification of API & CE.And the annual production capacity reaches 200000tons,the quantities of export is 80000tons per year.

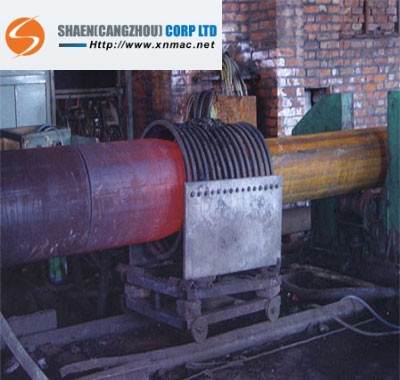

Specifications:production range:OD108mm-1200mm,thickness:6mm-80mm,material:carbon steel,alloy steel,drive type:hydraulic
