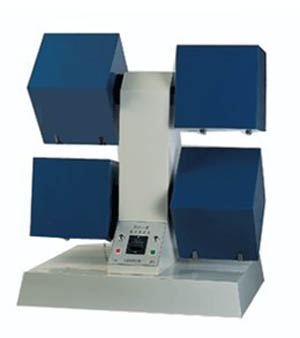

Pilling Tester is a fabric surface fault characterized by little pills of entangled fibres clinging to the surface. These are formed during wearing or washing by the entanglement of the loose fibres which protrude from the fabric surface and development of these into spherical bundles anchored to the fabric by a few unbroken fibres. These give a very unsightly look to the garments. To determine the tendency to form pills, test specimens taken from the fabric sample are rubbed against each other under controlled conditions and the appearance of the test specimen after rubbing for the specified period is compared against standard rating photographs for grading the fabric. RELATED STANDARD IS 10971 – 1984 Method for Determination of Pilling Resistance of fabrics

Ross Flexing Tester To measure cracking resistance of sole material crack when it was bended Standards: ASTM-D1052 SATRA TM60 ISO-4643 To measure cracking resistance of sole material crack when it was bended Specially test the flex-endurance of rubber, sole, PU…etc. The constant expansion by this machine, bending, examines the minus failure, damaged and cracked degree. Fixture six groups (sets), an augmentation, can test 12 slices counter LCD, 0 ~ 99999999 dimension 78 x 48 × 44 cm weight 56 kg power supply for 1, AC220V, 3 A

1 m³ Test Chamble For Formaldehyde Release Specifications Inner capacity 1000L± 2% Temperature range 20~40℃；± 0.5'C, Temperature uniformity 士1'C Humidity range 30%～60%RH；± 3.0%RH Air exchange rate 1 士0.05h-1 Air velocity 0.1-0.5m／s Formaldehyde in cabin ≤0.006mg/m³ Power supply 220V, 16A Noise under 70dB Standard Referenced 1. GBl8580-2001 "indoor decoration materials, man-made board and products of man-made board formaldehyde release limit " 2. ASTM D6007-2 "Standard Test Method for Determining Formaldehyde Concentration in Air from Wood Products Using a Small Scale Chamber " 3. EN 717-1 Wood-based panels - Determination of formaldehyde release

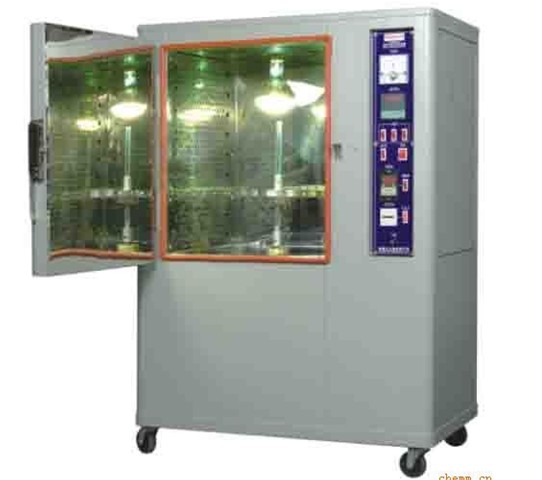

Light discoloration (UV) Tester To measure the resistance to UV light of soling and upper material Standards :ASTM, JIS, BS, ISO, ICE, UL ASTM-D1148, HG/T3689 Five, the main technical parameters: The internal dimension of test chamber : 50 x 50 x 60 cm Temperature control range: normal temperature ~ 200. C. Control mode: automatic calculus controller Temperature display, 0.1. C. The control accuracy: ± 3. C. Distribution precision: plus or minus 1% 1. C (at-100. C). Time memory: 0-999 hours, blackouts, the memory type, including a buzzer. Wheel speed: Dia. 45 cm, 10 r. P.M. ± 2 r. P.M UV light source: UV300W light bulb Standard spare parts: shed board 2 pieces Heating mode: hot air loops Safety protection: EGO over temperature indicator, safety overloaded power switch ammeter Material: internal SUS# 304 stainless steel plate, external senior finish External dimensions (1 × W × H) 114 x 94 x 130 cm Power: AC-220 V 50 60 Hz 20 A

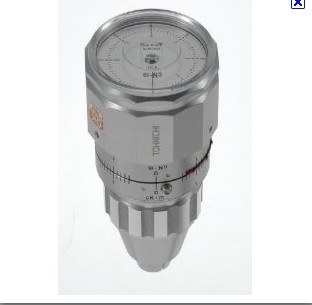

Torque Gauge To determine whether components of toys can be removed by a certain torque force. A torque-measuring device is used in conjunction with a torque clamp to record the applied force. Any projection, part or assembly of a toy that a child can grasp with at least the thumb & forefinger or the teeth shall be subject to the torque test. Related standards ASTM F963 CFR 16 CFR CPSC USA EN71
