Beaker Dyeing Machine HTHP Beaker Dyeing Machine is ideally suitable for sample dyeing of fabric and yarn at high temperature and pressure. Features of HTHP Beaker Dyeing Machine: The machine comprises of tank, beaker and gear box The beakers are capable of withstanding pressure upto 6.0 Kg/cm square. Microprocessor based programmer is provided which ensures temperature control. Promises long life and leak proof service even after many years of use. Specifications of HTHP Beaker Dyeing Machine: Electric Supply : Single phase 220 Volts, AC Supply Heater Supply : 3000 watt Single Phase Capacity of Beaker : 250 ml Beaker X 12 Pcs. Carriage Rotation : At 22 rpm. (±2 rpm) Maximum operating Temperature : 135°C. Maximum rate of heating : 3.5°C/Min. Control through Temperature Controller / Programmer based having auto/manual operation. Heater rating : 3 x 2 KW Medium used for Heating : Glycerine Electrical Supply : Single Phase A.C Motor : Reversible Synchronous Geared Motor Overall dimensions of the Unit : 700 ±05mm (L) x 470±05mm (H) x 370±05mm (W) Net Weight of the Unit : 35 Kg. Net Weight of the Beaker (250ml) : 10.980 Kg.

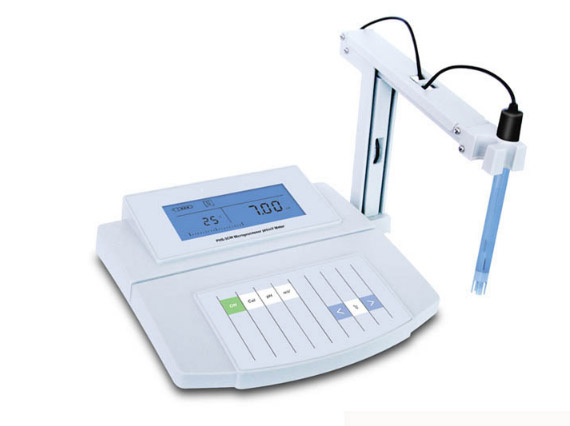

PH Meter — pH Range: 0.00 to 14.00pH — Resolution & Accuracy: 0.01 & 0.05pH — Millivolt Range: 1999mV — Resolution & Accuracy: 1mV & 10mV — Calibration Points: 2 points — pH Buffer Options: PH4.00, pH6.86, pH9.18 — Temperature Compensation: 0 to 99º C, Manual — Dimensions: 210mm(L) 205mm(W) 65mm(H) — Power: 9VDC, using AC adapters 110VAC/220VAC, 60/50Hz

Shaking Water Bath Widely applicable for laboratory researches on bacteria cultivation, fermentation, hybridization, chemical and biochemical reaction, enzymes and tissues research, which have a high requirement on precision of shaking speed and temperature. Model Temperature Range Display Resolution Temperature Uniformity Shaking Speed Range Amplitude Power Consumption Interior Dimension (W×D×H, mm) Exterior Dimension (W×D×H, mm) SLD-1 RT+5~99degree 0.1degree ±0.1degree 30~150Times/min 30mm/ 40mm (Option) 1250W 438×310×250 643×350×353 SLD-2B SLD-3 1650W 618×310×250 823×350×355

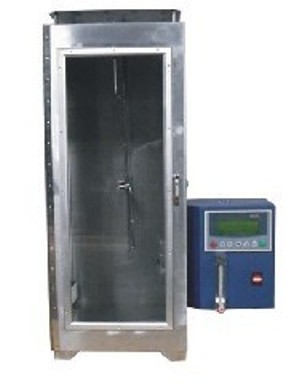

Vertical Flammability Tester Flammability of fabrics may be determined by igniting one end of fabric under test by mean of a suitable burner having a specified flame intensity and determining the extend of propagation of flame and the time taken by the flame to propagate between two marked levels. In the vertical strip flammability tester, a test specimen cut from the fabric under test is suspended vertically inside an enclosure and the flame from a Bunsen burner is applied at its bottom edge. The time taken by the flame to propagate between two specified marks is then determined from which the numerical rating of flame resistance property found. This method is suitable for all fabrics which are in form of sheets or can be converted by cutting into sheets. Flammability Tester for fabrics consists of a vertical sheet metal cabinet closed on three sides and top and bottom. The front side is kept open for insertion of the test specimen. The test specimen is suspended from a clip such that it hangs freely in the center of the cabinet. Two marker wires are fixed behind the fabric under test such that they are located 28 cm and 155 cm below the clip. A removable auxiliary clip is also provided to enable shorter specimens of flame resistant fabrics to be tested. A bunsen burner of 9.5 mm diameter opening is placed in the lower half of the cabinet and can be moved on two guide rods to enable it to be brought vertically below the free end of the test specimen. A flexible pipe line with a needle valve is provided to control the flame height. TECHNICAL DATA Size of Test Specimen 183 cm x 4 cm Size of modified test specimen 40 cm x 4 cm Distance of upper marker wire from the main clip 28 cm Distance of lower marker wire from the main clip 155 cm Distance of lower marker wire from the auxiliary clip 10 cm Diameter of burner opening 9.5 mm Dimensions of the Cabinet 35 cm x 40 cm x 205 cm

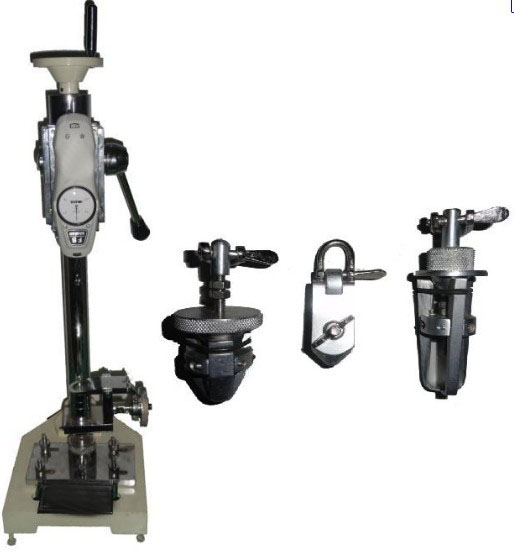

Button Snap Tester/ Button Pull Tester Button Snap Pull Tester’ is a user friendly equipment to test ‘SNAP STRENGTH’ of buttons/rivets/joints to ensure that it meets design tolerance and safety levels, particularly in baby clothing. The equipment comprises of- a) IMADA Push-Pull force gauge of 20 Kgf. b) Vertical stand to hold the gauge with arrangement to change the position of gauge. c) Base which houses the frame to grip the attachment. d) ‘Button Pull Fixture’- Connected with force gauge. Suitable to grip buttons from 5mm to 25mm. The needle in the gauge stops at the breaking load.
