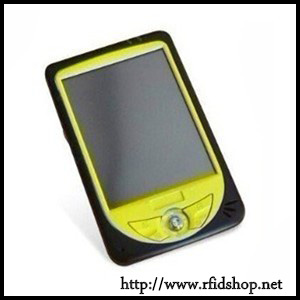

D-Think X20 series are handheld RFID reader/writer with high reliability, low power consumption, miniaturization and modular design features, it can work offline or online and provides function-rich software interface as well as hardware resources. With convenient and practical applications software development platform, it runs on fully functional WinCE operating system and the WINDOWS-based integrated development that offers customers the best flexibility to meet their software solutions for specific needs. D-Think X20 Series RFID reader with 3.5-inch colored TFT-LCD and 320x240 pixels is the new generation of flexible, easy to program and expandable handheld PDA, automatic identification data capture as well as intelligent data processing terminal. It is designed to improve the management efficiency and reliability of the products and related information in the fields of which needs products identification,data collection and information login. Parameters CPU Intel Xscala Frequency 300MHz Operating System Microsoft Pocket PC 2003 Simple Chinese/English Secondary Development EVC,C#,VB.net Flash ROM 32M SDRAM 64M Expansion SD Card LCD Display 3.5-inch color TFT-LCD 320x240 Pixels Touch Screen with Keyboard 4 Keys Ergonomic Design, Operated by Both Hands or Single Hand,High Durability Hard Keys Buzzer with Real-time Clock with Physical Interface USB, Portable Base Connector , Connector: USB Device Port, USB Main Port, Power Supply Audio Interface 2.6mm Stereo Headphone Jack, Speaker and MIC Interface SD Interface Standard SD Card Interface, Expandable high-capacity SD Card Support SD CARD and SDIO Functions; Read and Write SD Card Steadily, Support SD WLAN CARD Function(WI-FI) 13.56MHz Support Multiple ISO/IEC14443TypeAcard:Mifare One S50,Mifare One S70,Mifare Ultra Light, Mifare Pro, Mifare DESFIRE,SHC1102 Support Multiple ISO/IEC14443TypeB Card:TRH1064,SR176,SIRX4K,AT88SF020 Support Multiple ISO/IEC15693 Card: I.CODE SLI, Tag it 125KHZ Support Multiple 125KHZ Cards:EM4001,EM4100,EM4002,T5557/5567,EM4469,EM4569,EM4305,HITAG-S 134.2KHZ IS11784/11785&Compatibility 433Mhz Support Reading Tags of 433Mhz SAM Support SAM Card Read/Write Distance 1-6CM Read Speed About 0.30 Second WIFI SD WLAN CARD Function (WI-FI) IrDA CASIO Original Protocol1200bps-19.2kbps Standby Time >200 Hours Working Time >8 Hours Battery 1300mAH Recharge Time 40 Minutes Working Status RFID 0.4W System 0.3W Background Light 0.36W Outlook Size 114mm(L) * 72mm(L) * 27mm(H) Weight About 150g Production Process Surface-mount Technology Color Black Operating Temperature -10°C~50°C Storage Temperature -20°C~70°C Humidity 0%~95%( Non-condensing)

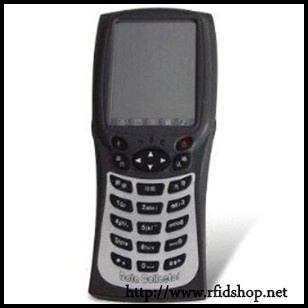

The D-Think H30 Handheld Reader directly addresses the key issues facing mobile workers. It is light-weight, ergonomic and has a good battery life to last about one week. It runs on proprietary CL embedded operating systems with data security and self-troubleshooter functions. It supports LF125/134.2KHZ and HF 13.56MHZ RFID full protocol read and write. It has a built-in micro-power wireless module with the operating frequency from 418MHZ to 455MHZ.It connects via USB to a laptop or desktop computer. The D-Think H30 is ideal for water and power industry data reading, tracking and monitoring mobile assets, inventory management, logistics and mobile field service applications such as security, condition monitoring and service level adherence.

D-Think 300 RFID Reader is the most powerful series products in D- Think LF family products operating with the low frequency 125Khz~134.2Khz.Besides supporting general EMID (TK4100, GK4100, EM4100) cards reading, D-Think 300 can read and write low frequency IC chips such as ATA5567, ATA5577, EM4469, EM4305, Hitag-S through efficient decoding algorithm combined with Powerful data processing function of microprocessor. In addition, It can implement the decoding and the making of the animal format tags in accordance with ISO11784/85 protocols. D-Think 300 is a non-contact IC card reader, it's easy and convenient to operate and reading speed. Its maximum reading distance is up to 10cm.The user-friendly design of DEMO program allows beginners to understand card structure quickly. And user-controlled LED backlight and buzzer reflects the secondary development of the rich features of D-Think ®products. D-Think 300 series readers, in strictly accordance with ISO11784/85protocols, designed for racing pigeons management, reading and writing electronic ear tag of animals such as pigs, cattle, sheep, rabbits and so on. In order to make this product quickly be integrated into the applications, we offer a lot of sample applications of development tools for developers, which enables developers get down to the development quickly.

D-Think 300 RFID Reader is the most powerful series products in D- Think LF family products operating with the low frequency 125Khz~134.2Khz.Besides supporting general EMID (TK4100, GK4100, EM4100) cards reading, D-Think 300 can read and write low frequency IC chips such as ATA5567, ATA5577, EM4469, EM4305, Hitag-S through efficient decoding algorithm combined with Powerful data processing function of microprocessor. In addition, It can implement the decoding and the making of the animal format tags in accordance with ISO11784/85 protocols. D-Think 300 is a non-contact IC card reader, it's easy and convenient to operate and reading speed. Its maximum reading distance is up to 10cm.The user-friendly design of DEMO program allows beginners to understand card structure quickly. And user-controlled LED backlight and buzzer reflects the secondary development of the rich features of D-Think ®products. D-Think 300 series readers, in strictly accordance with ISO11784/85protocols, designed for racing pigeons management, reading and writing electronic ear tag of animals such as pigs, cattle, sheep, rabbits and so on. In order to make this product quickly be integrated into the applications, we offer a lot of sample applications of development tools for developers, which enables developers get down to the development quickly.

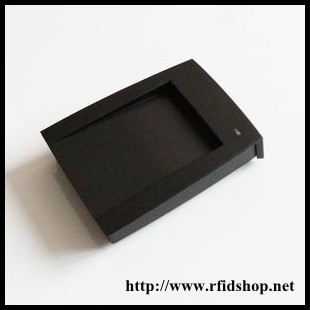

ID card reader is a plug and play RFID reader with 125kHz frequency. Its reading speed is very high which is three times higher than that of similar products. D-Think Easy-L ID card reader is widely used in Internet cafes, member attendance, access control, property management, authentication and other places with stable, practical, high-performance characteristics. Features Card Type: ID Card (EM Card) ΜEM4100 Or RFID Cards and Compatiblity Data Format: The Last Four-Byte Hexadecimal Form of the Card Serial Number Converted to Ten Decimal Form, “Enter” End (Can be Customized) Operating Frequency: 125Khz Communication Format: 9600BPS 8, N, 1 Reading Distance:> 8cm Reader Time: <100ms Output Interface: USB without Drive ■ Specifications Ambient Temperature: -10 °C -40 °C Power: USB Power Supply Relative Humidity: 15% ~ 85% RH Maximum Power Consumption: 100mw Reading Distance :0-20cm Dimensions: 100 * 60 * 12mm Weight: About 80g ■ Output Format The Last Four-Byte Hexadecimal Form of the Card Serial Number Converted to Ten Decimal Form ■ Custom Services Output Format can be Changed according to User Requirements
