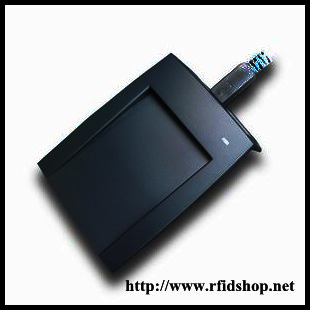

D-Think 501 Series non-contact IC card reader is the necessary front-end equipment to develop non-contact IC card related products and system integration. It can be a single structure on the whole, can also be embedded as a component into other systems. The most prominent features are high-performance, high stability and high compatibility along with 4 kV ESD protection. It is widely used in smart card system and the ideal choice for public transit, access control, attendance, network security, electronic ticketing and so on. D-Think 501 is a non-contact IC card reader, it’s easy and convenient to operate and reading speed. Its maximum reading distance is up to 10cm.The user-friendly design of DEMO program allows beginners to understand card structure quickly. And user-controlled LED backlight and buzzer reflects the secondary development of the rich features of D-Think ®products. In order to make this product quickly be integrated into the applications, we offer a lot of sample applications of development tools such as VC, VB, DELPHI, PB, C #, Web control for developers, which enables developers get down to the developing quickly. Features Radio Frequency Identity (RFID) • Comply with ISO 14443A Protocol • Support Mifare ® 1k S50, Mifare ® 1k S70, Mifare ® Ultralight, Mifare ® Ultralight C • Support Mifare ® Desfire, Mifare ® Pro • Support FM11RF08, BL75R06, ISSI4439 • Comply with ISO 14443B Protocol • Support AT88RF020/SR176/SRIX4K/SLE66CL160S and CPU Cards in line with ISO14443B Protocol • Support Reading the ID Number of Second-generation ID Card • Comply with ISO 15693 Protocol • Support TI Rfid Tag-It HF • Support NXP I. CODE SLI and other Chips in line with the ISO15693 Protocol • Support Reading and Writing • Support the Secondary Development Physical Interface • USB 2.0 with USB Cable 1.8 M long, Shielded and Magnetic • RS 232 with Cable 1.5 M long • TTL RFID Antenna • Integration Design of Reader and Antenna Frequency • 13.56Mhz (HF: High Frequency) ESD • 4KV Operating System • Microsoft Windows2000/XP/Vista/WIN 7/WIN CE • Linux Read / Write Distance • ISO 14443A: 10CM (Depending on the Antenna Structure and the used Environment) • ISO 14443B: 5CM (Depending on the Antenna Structure and the used Environment) • ISO 15693:10 CM (Depending on the Antenna Structure and the used Environment) Power • 5 Ma (Typical) Standby • 90 Ma (Typical) Field Scanning • 5V (Typical) Operation Shape • 110 * 80 * 26 (mm) • About 100g • Three-color LED • Built-in Buzzer Development Environment • C + +, VC, Java, C #, Vb, Vb.Net, Delphi, Etc. Applications • Application Software Recharge • Consumer • E-ticket • Card

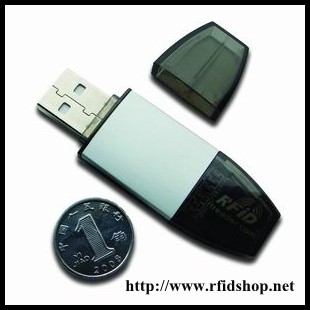

USBKey RFID Card Reader (UPCD) is a portable RFID Card Reader with 13.56MHz frequency which can easily fit in pocket and be compatible with devices used in daily life such as computers, smart phones, laptops etc. UPCD can read and write Mifare One S50, Mifare One S70, Mifare Pro, PKI and other RFID cards and tags complying with ISO/IEC 14443A/B protocol . This UPCD can be deployed for commercial and personal applications which include inventory tracking, authentication and payment systems(e-wallet). It offers a low cost platform for deployment of interactive read/write applications. It communicates with computer through USB data interface, USB extension cable also works. Features Radio Frequency Identity (RFID) • Comply with ISO 14443A Protocol • Support Mifare ® 1K S50, Mifare ® 1K S70, Mifare ® Ultralight, Mifare ® Ultralight C • Support Mifare ® Desfire, Mifare ® Pro • Support FM11RF08, Bl75R06, ISSI4439 • Comply with ISO 15693 Protocol • Support TI Rfid Tag-it HF • Support NXP I. Code SLI and other Chips in line with ISO15693 Protocol • Support Reading and Writing • Support the Secondary Development Physical Interface • Usb RFID Antenna • Integration Design of the Reader and Antenna Frequency • 13.56MHz (HF: High Frequency) Operating System • Microsoft Windows2000/XP/Vista/Win 7 • Win CE, Windows Mobile5.0/6.0/6.5 Read / Write Distance • ISO 14443a: 5cm (Depending on the Antenna Structure and the Used Environment) • ISO 15693:6 Cm (Depending on the Antenna Structure and the Used Environment) Power • 5 Ma (Typical) Standby • 90 Ma (Typical) Field Scanning • 5v (Typical) Operation Shape • 60.8mm (Including Usb Metal Interface) * 20mm * 8mm • About 9.7g • Led Development Environment • C, Vc, Java, C #, Vb, Vb.Net, Delphi, Etc. Applications • Power / Pipeline Patrol • Handheld Consumer • E-Ticket • Authentication

Features Radio Frequency Identity (RFID) • Comply with ISO 14443A Protocol • Support Mifare ® 1K S50, Mifare ® 1K S70, Mifare ® Ultralight, Mifare ® Ultralight C • Support Mifare ® Desfire, Mifare ® Pro • Support FM11RF08, Bl75R06, ISSI4439 • Comply with ISO 15693 Protocol • Support TI Rfid Tag-it HF • Support NXP I. Code SLI and other Chips in line with ISO15693 Protocol • Support Reading and Writing • Support the Secondary Development Physical Interface • Usb RFID Antenna • Integration Design of the Reader and Antenna Frequency • 13.56MHz (HF: High Frequency) Operating System • Microsoft Windows2000/XP/Vista/Win 7 • Win CE, Windows Mobile5.0/6.0/6.5 Read / Write Distance • ISO 14443a: 5cm (Depending on the Antenna Structure and the Used Environment) • ISO 15693:6 Cm (Depending on the Antenna Structure and the Used Environment) Power • 5 Ma (Typical) Standby • 90 Ma (Typical) Field Scanning • 5v (Typical) Operation Shape • 60.8mm (Including Usb Metal Interface) * 20mm * 8mm • About 9.7g • Led Development Environment • C, Vc, Java, C #, Vb, Vb.Net, Delphi, Etc. Applications • Power / Pipeline Patrol • Handheld Consumer • E-Ticket • Authentication

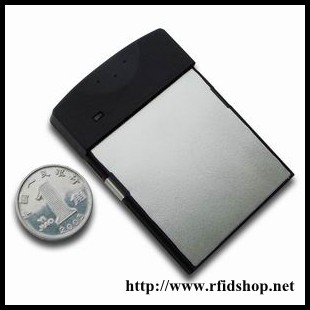

Compact Flash RFID Reader (CFRD) is a plug&play secure-digital RFID reader/writer with the CF interface, specially designed for mobile RFID read and write, which can communicate with most of PDAs or smart phones, it can also combines with computers through PCMCIA interface . Plus its thumb sized compact design offers users the most versatile, flexible and convenient measurement capabilities. CFRD supports Microsoft Pocket PC 2002/2003, Windows Mobile 5.0/6.0 operating system; It can read can read and write RFID tags complying with ISO / IEC 14443A, ISO / IEC 14443B and ISO / IEC 15693 international standards .It transmits information to other devices through WIFI, CDMA, GSM or Bluetooth .Coming with the product, free SDK is provided. CFRD can be used widely in the application fields of access control, asset tracking, warehouse Management, payment systems, public transportation, transit ticketing, consumer retail, pharmaceutical, health care and Livestock tagging etc. Features Radio Frequency Identity (RFID) • Comply with ISO 14443A Protocol • Support Mifare ® 1k S50, Mifare ® 1k S70, Mifare ® Ultralight, Mifare ® Ultralight C • Support Mifare ® Desfire, Mifare ® Pro • Support FM11RF08, BL75R06, ISSI4439 • Comply with ISO 14443B Protocol • Support AT88RF020/SR176/SRIX4K/SLE66CL160S and CPU Cards in line with ISO14443B Protocol • Support Reading the ID Number of Second-generation ID Card • Comply With ISO 15693 Protocol • Support TI Rfid Tag-It HF • Support NXP I. CODE SLI and other Chips in line with the ISO15693 Protocol • Support Reading and Writing • Support the Secondary Development Physical Interface • Compact Flash TYPE A / B RFID Antenna • Integration Design Of the Reader and Antenna Frequency • 13.56Mhz (HF: High Frequency) Operating System • Microsoft Windows2000/XP/Vista/WIN 7 • WIN CE, Windows Mobile5.0/6.0/6.5 Read / Write Distance • ISO 14443A: 6CM (Depending On the Antenna Structure and the Used Environment) • ISO 14443B: 3CM (Depending On the Antenna Structure and the Used Environment) • ISO 15693: 8CM (Depending On the Antenna Structure and the Used Environment) Power • 5 Ma (Typical) Standby • 90 Ma (Typical) Field Scanning • 5V (Typical) Operation Shape • 42.6 * 59.5 * 7.5 (Mm) • About 16.5g • LED Development Environment • C + +, VC, Java, C #, Vb, Vb.Net, Delphi, Etc. Applications • Power / Pipeline Patrol • Handheld Consumer • E-Ticket • Authentication

SDIO RFID Reader (SDRD) is a plug&play secure-digital RFID reader/writer with the SD card interface, specially designed for mobile RFID read and write, which is being widely used on most of PDAs, Laptops or Tablets. It supports a wide range of RFID tag protocols enabling a larger range of potential application capabilities. Plus its thumb sized compact design offers users the most versatile, flexible and convenient measurement capabilities. SDRD is also compatible with most kinds of PDAs which are equipped with the built-in SD slots and running Microsoft Windows Mobile 5.0/6.0 or Windows CE operating systems. It can read and write RFID tags complying with ISO / IEC 14443A, ISO / IEC 14443B and ISO / IEC 15693 international standards .It transmits information to other devices through WIFI, CDMA, GSM or Bluetooth .Coming with the product, free SDK is provided. SDRD can be used widely in the application fields of access control, asset tracking, warehouse Management, payment systems, public transportation, transit ticketing, consumer retail, pharmaceutical, health care and Livestock tagging etc.
