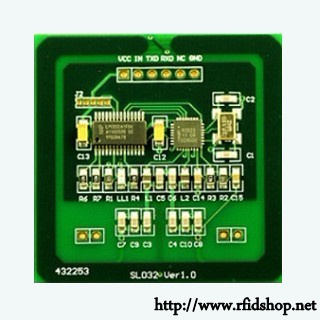

Being developed based on NXP's low power transponder ICs, HF RFID Module SL032 is a mini Mifare read/write module. It supports Mifare 1k, Mifare 4k, Ultralight and DesFire and is applicable for 13.56MHz. Its maximum working current and sleep current are 45mA and 10uA respectively. In addition, it can integrate all necessary components and antenna in one PCB. Features •Frequency: 13.56MHz • Protocol: ISO 14443A • Tag supported:Ultralight, Mifare Mini, Mifare 1k, Mifare 4k, FM11RF08, DesFire • Interface: UART • Supply voltage: 2.5~3.6 VDC • Dimension: 46*46 mm

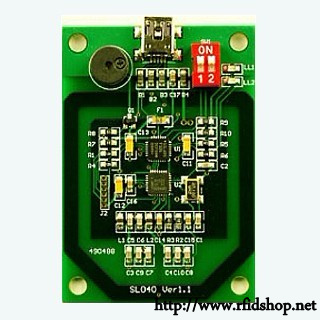

With the function as USB-Keyboard emulator, HF RFID Module SL040 is a mini Mifare read-only module which is applicable for 13.56MHz. It can read the unique serial number for all Mifare cards, including Mifare 1k, Mifare 4k, Mifare Mini, Ultralight, DesFire and Mifare ProX etc. In addition, SL040 can support to read data from Mifare 1k, Mifare 4k and Ultralight. Its output format can be set by SL040Config.exe tool. Features • Frequency: 13.56MHz • Protocol: ISO 14443A • Tag supported: Ultralight, Mifare Mini, Mifare 1k,Mifare 4k, FM11RF08, *Mifare Plus, *DesFire, *Mifare_ProX * only UID readable • Interface: USB • Supply voltage: 4.5~5.5 VDC • Dimension: 65*46 mm

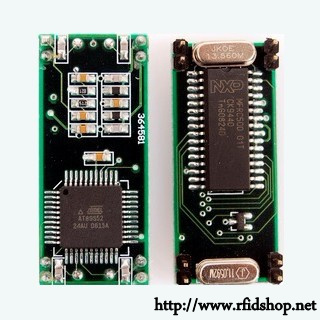

Being developed based on NXP's transponder IC, HF RFID Module SL013 is a compact Mifare read/write module which supports Mifare 1K and Mifare 4K. Its footprint is like a 32 pin DIP package type. SL013 has TTL serial port for external communication and integrate all necessary components to driver directly matched antenna. One separate antenna at diameter of 40mm will be provided to the customer as part of SL013 module package. Features •Frequency: 13.56MHz • Protocol: ISO 14443A • Tag supported: Mifare Mini, Mifare 1k, FM11RF08 • Interface: UART in TTL Level • Supply voltage: 4.5~5.5 VDC • Dimension: 42*18 mm

Being developed based on NXP's transponder IC, HF RFID Module SL013 is a compact Mifare read/write module which supports Mifare 1K and Mifare 4K. Its footprint is like a 32 pin DIP package type. SL013 has TTL serial port for external communication and integrate all necessary components to driver directly matched antenna. One separate antenna at diameter of 40mm will be provided to the customer as part of SL013 module package. Features •Frequency: 13.56MHz • Protocol: ISO 14443A • Tag supported: Mifare Mini, Mifare 1k, FM11RF08 • Interface: UART in TTL Level • Supply voltage: 4.5~5.5 VDC • Dimension: 42*18 mm

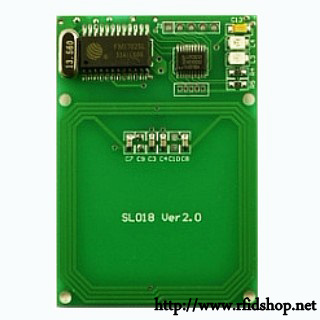

Being developed based on China Fudan 13.56MHz transponder IC, HF RFID Module SL018 can be regarded as the cheapest Mifare reader/writer in the world market. In spite of its low price, SL018 can support all the functions of Mifare 1K, Mifare 4K and Ultralight. It does auto Real-time detecting tag which moves into or out of detective range and reports through one output pin's logic level. In addition, it integrates all necessary components and antenna in one PCB. Features •Frequency: 13.56MHz • Protocol: ISO 14443A • Tag supported: Ultralight, Mifare Mini, Mifare 1k, Mifare 4k, FM11RF08 • Interface: I2C • Supply voltage: 4.4~7.0 VDC • Dimension: 65*45 mm
