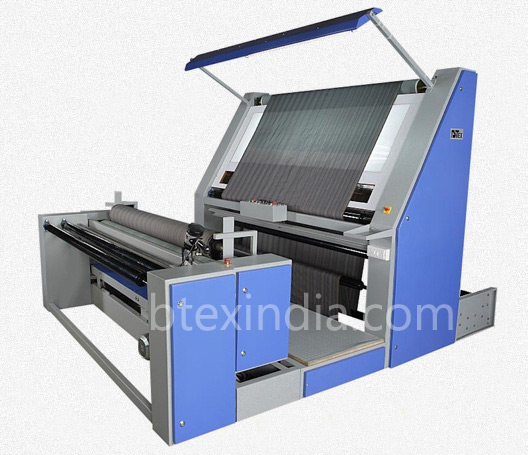

B-Tex Inspection Machine, BIM – ABB+RR is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Batch to Roll From. Here fabric is feed through Big-Batch using Axial Un-winder and delivered in Roll form. Big-Batch Trolley is joined with Axial Un-winder through a Cardin Joint. This is most used technology today used to inspect the fabric from Big-Batch Form. It can be used for grey, Semi-Finish and finish fabric inspection, and if desired fabric can also be feed through Roll or Fold Form. Also BIM-ABB can be equipped with PLC and Data Logging Systems for inspection report generation. Features Fabric inlet from Batch, Roll or flat fold Form Fabric outlet in roll form Driven Axial Un-Winder Auto-Stop at feed, if machine running out of fabric Laminated Inspection Table Top & Bottom Lights Length Counter Meter for fabric length measurement Sensor type Edge Guiding for presentable roll (No Air or Oil required) Full Length reversing for rechecking with Jog/Inching operation S.S. Scroll Roller for creaseless fabric roll Adjustable roll Compactness Dancing Roller Mechanism for Multi Drive Synchronisation Guide Rollers with Smooth finish Wooden Platform for Operator A.C. Inverter Drive with In-built software (Low electricity consumption) Imported rubber emery on winding roll for extra life Variable speed from 0 - 60 meter/min. Italian geared-motors on all positive driven rolls Utility Tray and Single phase Switch box is provided Safety sensors and Emergency stop is provided

B-Tex Inspection Machine, BIM – BB+RR is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Batch to Batch Form. This is most used technology today used to inspect the fabric from Big-Batch Form, where fabric is feed through Big-Batch using Axial Un-winder and Delivered again in Big-Batch form. Big-Batch Trolley is joined with Axial Un-winder through a Cardin Joint on Both Feed and Delivery. E+L Edge Guider is used to guide the fabric and maintain Centre line to deliver crease free compact Batch Rolls. It can be used for grey, Semi-Finish and finish fabric inspection, and if desired fabric can also be feed through Roll or Fold Form. Also BIM-BRR can be equipped with PLC and Data Logging Systems for inspection report generation. Features Fabric inlet from Batch, Roll or flat fold Form Fabric outlet in roll form Driven Axial Un-Winder Auto-Stop at feed, if machine running out of fabric Laminated Inspection Table Top & Bottom Lights Length Counter Meter for fabric length measurement E + L Edge Guiding System Full Length reversing for rechecking with Jog/Inching operation Adjustable roll Compactness Dancing Roller Mechanism for Multi Drive Synchronisation Guide Rollers with Smooth finish Wooden Platform for Operator A.C. Inverter Drive with In-built software (Low electricity consumption) Imported rubber emery on winding roll for extra life Variable speed from 0 - 80 meter/min. Italian geared-motors on all positive driven rolls Utility Tray and Single phase Switch box is provided Safety sensors and Emergency stop is provided

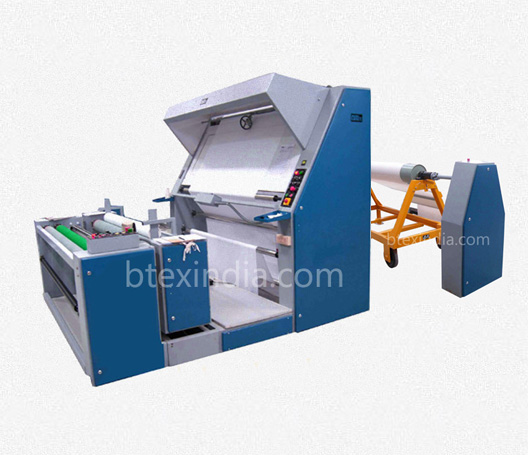

B-Tex Inspection Machine, BIM – ABB+RR/FF is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Batch/Roll/Fold to Roll/Fold Form. This machine is also known as Combi, where one machine works in different input and output options and this machine never sits Idle. Fabric can be Feed in Roll/Fold or Big-Batch Form and can be Delivered in anyone option like, Fold/ Roll /Batch Form. BIM – ABB+RR/FF saves space, labour and as it works as 3 in 1 machine, it saves lots of money. It can be used for grey, Semi-Finish and finish fabric inspection, and if desired fabric can also be feed through Roll or Fold Form. Also BIM – ABB+RR/FF can be equipped with PLC and Data Logging Systems for inspection report generation. Features Fabric inlet from Batch, Roll or flat fold Form Fabric outlet from Batch, Roll or flat fold Form Driven Axial Un-Winder in Feed and Delivery Auto-Stop at feed, if machine running out of fabric Laminated Inspection Table Top & Bottom Lights Length Counter Meter for fabric length measurement E + L Edge Guiding System Full Length reversing for rechecking with Jog/Inching operation Adjustable roll Compactness Dancing Roller Mechanism for Multi Drive Synchronisation Guide Rollers with Smooth finish Wooden Platform for Operator A.C. Inverter Drive with In-built software (Low electricity consumption) Imported rubber emery on winding roll for extra life Variable speed from 0 - 80 meter/min. Italian geared-motors on all positive driven rolls Utility Tray and Single phase Switch box is provided Safety sensors and Emergency stop is provided

B-Tex Inspection Machine, BIM+BR is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Roll to Roll Form with Brushing the Fabric. BIM+BR allows to inspect the fabric as well as brush to remove working impurities in one go. Brushing unit is attached in feed with highly efficient suction and dust collector device. BIM+BR guarantees that only high quality fabric is delivered at economic cost. It can be used for grey, Semi-Finish and finish fabric inspection. Also BIM-BRR can be equipped with PLC and Data Logging Systems for inspection report generation. Features Fabric inlet from Batch, Roll or flat fold Form Fabric outlet in roll form Fabric Brushing Unit Highly efficient Suction Device Dust Collector Adjustable Fabric Tension Auto-Stop at feed, if machine running out of fabric Laminated Inspection Table Top & Bottom Lights Length Counter Meter for fabric length measurement Sensor type Edge Guiding for presentable roll (No Air or Oil required) Full Length reversing for rechecking with Jog/Inching operation S.S. Scroll Roller for creaseless fabric roll Adjustable roll Compactness Dancing Roller Mechanism for Multi Drive Synchronisation Guide Rollers with Smooth finish Wooden Platform for Operator A.C. Inverter Drive with In-built software (Low electricity consumption) Imported rubber emery on winding roll for extra life Variable speed from 0 - 60 meter/min. Italian geared-motors on all positive driven rolls Utility Tray and Single phase Switch box is provided Safety sensors and Emergency stop is provided

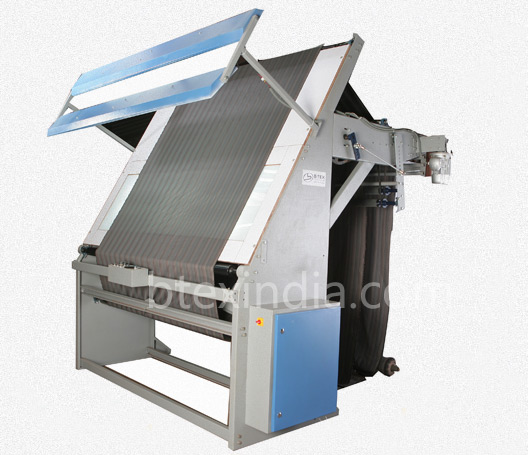

B-Tex Inspection Machine, BIM-FF is a perfect and reliable tool for detecting fabric defects and incorrect sizes for all types of Fabric in Fold to Fold Form. BIM-FF comes with Double Inspection table for clear defect view. Fabric can be Feed in Roll/ Fold form and is delivered in fold form after inspection and possible mending. BIM-FF requires less space and if desired, rolling option can be incorporated in the same machine with sliding operator chair. It can be used for grey, Semi-Finish fabric inspection, and if desired fabric can also be feed through Roll or Fold Form. Features Fabric inlet from Batch, Roll or flat fold Form Fabric outlet from flat fold form Laminated Inspection Table Top & Bottom Lights Length Counter Meter for fabric length measurement Full Length reversing for rechecking with Jog/Inching operation Guide Rollers with Smooth finish A.C. Inverter Drive with In-built software (Low electricity consumption) Imported rubber emery on winding roll for extra life Variable speed from 0 - 60 meter/min. Italian geared-motors on all positive driven rolls Utility Tray and Single phase Switch box is provided Safety sensors and Emergency stop is provided
