Specially designed for fine denier Lycra / Rubber thread covering. Easily convertible for single or double covering of Lycra / Rbber thread. Multi inverter drive, deparate motor for input / output / lower deck / upper deck / take-up pkg. position. Inverter drive control panel with PLC control and display monitor. Yarn parameter setting is very easy by key pad. Spring loaded pressure roller drafting system ensures uniform take-up of cover yarn result in uniform covering quality.

1. Preparation of feed package on Cops Winder. 2. Primary twisting on 60/70 mm pot TFO & 2/3 ply parallel winding on double flange bobbin in single process. 3. Feeding Double Flanged Bobbin produced on primary twisting to 80/90 mm pot of secondary twisting. 4. Secondary twisting is in reverse direction say if primary twist is in ‘S’ direction, secondary twisting has to be carried out in ‘Z’ direction. 5. Final package of the thread can be taken in bi-conical or straight cheese shape.

1. Revolutionary Double Deck design, launched first time & established successfully, gives better utilisation of valuable space. 2. Suitable for Pure Cotton, Spun Polyester, Blends & PVT Yarn with wide range for TPI selection. 3. Optimised design of spindles, right selection of bearings, better engineering gives lowest power consumption at highest productivity.

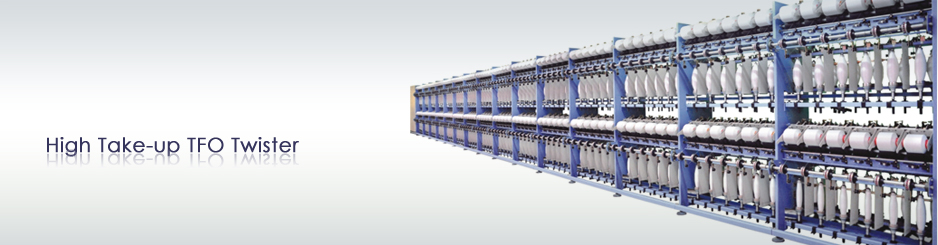

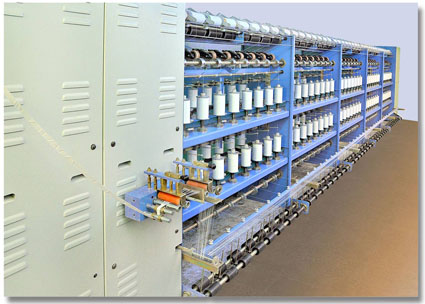

Sturdy Sheet Metal Frame Structure most suitable for Low Twist TFO gives smooth running at High Take Up and Spindle Speed. Improved design, SS Hard Chrome plated, matt finished & sand blasted spindle pots give better life and min. tension to the yarn. Sturdy Traverse Gear Box, Reduction Gear Box & Twist Change Gears suitable for High Take Up Speed machine. No need to stop the machine for doffing and to loose efficiency. Thanks to Individual Tapering Mechanism which helps in doffing the individual package at any stage without compromising the Package Quality. Controlled & Uniform Package Density best suitable for Dyeing. Angle guided moving trolleys provided on both sides of the machine are helpful for the operation of the upper deck. Machine can also be supplied with the SERVO DRIVE TRAVERSE SYSTEM.
