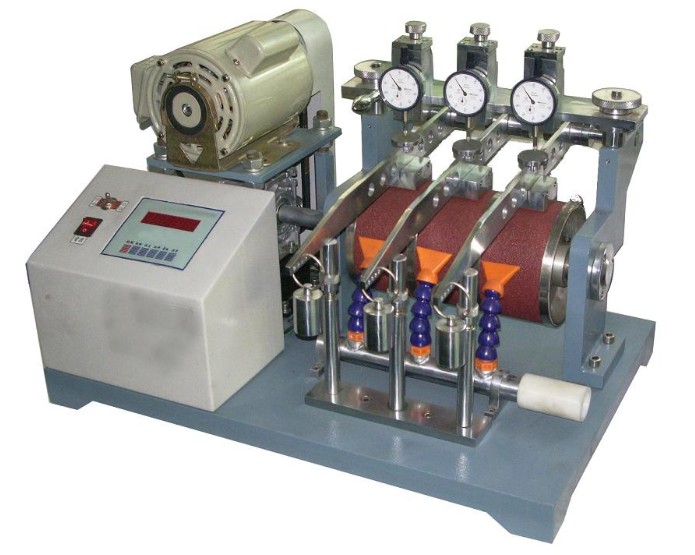

NBS Rubber Abrasion Tester The specimen under the specified load is abraded by the grinding paper stuck onto a rotating drum to check its abrasion consumption. Specifications: Load: 22N, 3sets Grinding Cloth: 40#grit Counter: LCD, 0~99,999,999 Dimension (W*D*H): 72×49×50 cm Weight: 104KG Power: 1∮, AC220V, 3 A

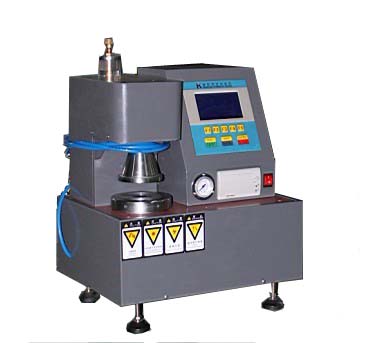

Electronic Bursting Tester This instrument is an international general (Mullen)-type apparatus, widely applied to packaging materials, mainly for the determination of Single and multi-layer cardboard and corrugated cardboard can also be used for silk, cotton and other non-paper materials, the bursting strength test. To put material only then automatically detect, automatic testing, automatic hydraulic recoil and automatic calculations, store test data, print instrument with digital display and can automatically print test results and data processing. Standards: JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPI T403, ISO2759-2001, GB/T1539 The main technical parameters: Induction: Pressure Converter Instruction mode: LCD display Mode of operation: automatic (by pressing the test button and no clear peak) Power unit: kpa, psi (Lbs / in ^ 2), kgf / cm ^ 2, with unit switching function Capacity choice: high-pressure 0 ~ 100kgf/cm ^ 2 (0.1kgf/cm ^ 2) Clamping ring material: stainless steel SUS # 304 Clamping ring diameter: upper and lower clamping ring diameter φ31.5 ± 0.05mm Hydraulic oil: 85% glycerol, 15% distilled water Pressing speed: high-pressure 170 ± 10ml/min Horse Power: 1/4HP motor vibration Dimensions: (L × W × H) 430 × 530 × 520mm Weight: 64kg Power source: 1 ∮, AC220V Standard configuration: a rubber membrane, a wrench, calibration film 10, a bottle of glycerin.

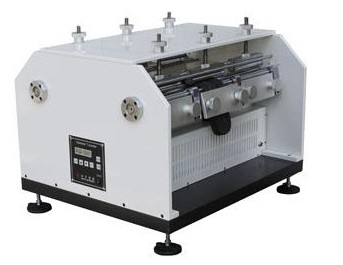

Ross Flexing Tester To measure cracking resistance of sole material crack when it was bended Standards: ASTM-D1052 SATRA TM60 ISO-4643 To measure cracking resistance of sole material crack when it was bended Specially test the flex-endurance of rubber, sole, PU…etc. The constant expansion by this machine, bending, examines the minus failure, damaged and cracked degree. Fixture six groups (sets), an augmentation, can test 12 slices counter LCD, 0 ~ 99999999 dimension 78 x 48 × 44 cm weight 56 kg power supply for 1, AC220V, 3 A

Shoes Flexing Tester To determine shoe flexibility and cracking resistance because of flexing movement in specific degree/speed It's used for determining the flexibility resistance and or indicating the cracks od shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency. Specimen 2paris（4pieces）UK size for children’s shoe 4~13;for adult`s:1~12 Flexing Angle 10°,15°,20°,25°,30°,45°,50°,60°,90°（Adjustable） Counter LCD,0~99,999,999 Dimension（W×D×H） 95×56×63 cm Weight 267kg Power 1∮,AC220V,3A

Life Tester of Clamshell Phone Purpose 1．Clamshell phone tester is special equipment for fatigue testing of clamshell phone. 2．The structural design is reasonable, unique, smart, space is limited for space or in the temperature inside the test environment. For different mobile phone models have full applicability. 3. The use of sensors to directly detect the phone is open counting. 4. Stable operation, low noise, maintenance-free. Standards: UL 1642, UL 2054; QC-T744-2006; QC-T743-2006; GB-18287-2000; SJ-11169-1998; YD-1268-2003; SJ / T 11170-1998; GB 8897.4-2002 etc.testing standards . The main technical parameters: Test product number: four 1. the controller: text control 2. Count: LCD, 0 to 999999 (6) can be set up, power-down memory 3. The test speed: 10 ~ 70 times / minute, manually adjustable 4. The motor speed: 0-200 rev / min 5、set up :30-140 ° angle 6、the thickness of the test phone: 10 ~ 60mm 7、action: Automatic 8、Power: AC220V ± 10% 50/60HZ 9、Overall dimensions: about 500 * 340 * 310mm Weight: about 15Kg
