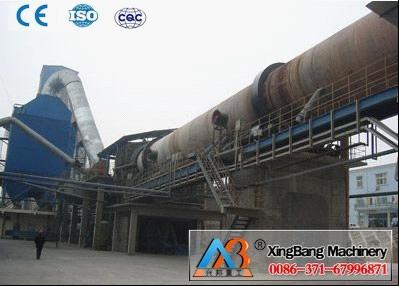

Titanium Rotary Kiln-cnxb0613 Structure of titanium rotary kiln : 1,The structure of titanium rotary kiln is similar to the rotary kiln in alumina and cement industry; 2,The cylinder is made of steel plate into, with refractory lining in build by laying bricks or stones; 3,The cylinder is formed a special angle with the horizontal; 4,Near the middle of the cylinder with spring plate fixed a big gear circle; 5,The main drive motor to transmit power through the main gear box,to drive the rotary kiln. Working principle of titanium rotary kiln; Firstly:Send the filter pressed titanium dioxide filter mass to the rotary kiln end (the high end of the cylinder) meanwhile (the low end of the cylinder) blows the clean fire and hot wind to the kiln and dehydrates and calcines the filter mass. The titanium dioxide filter mass after being dehydrated and calcined under the high temperature of above 1000 degree celsius ,can turn around the circle and move with the axial direction( from the high end to the low end) by the slanted rotary kiln body.Being continuously like that , the dehydration and calcining will be finished. Finally through the double hydraulic pressure reverse turning bed discharge valve in the lower part of the kiln hood cover, the material enters into the cooling machine. The titanium dioxide is made after being cooled and filtered. http://www.china-xingbang.com/22.html Ball Mill Rotary Kiln Jaw Crusher Stone Crusher Contact person: Luz Liu Tel: 0086-371-67996871 0086-371-67996872 E-mail: [email protected] MSN: [email protected] WEB: http://www.china-xingbang.com/

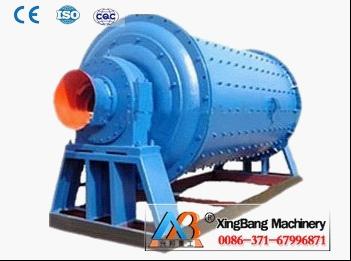

Wet Ball Mill-cnxb0613 Characteristics of Wet Ball Mill:The hollow axis adopts the cast steel;The lining can be replaced;Rotating adopts casting rolling gear;The barrel body is wearable;The machine runs smoothly works realiably;Works realiably;Working Process of Wet Ball Mill;The motor drives the cylinder rotate through deceleration device. When rotating in the cylinder, influenced by friction and centrifugal force, the crushed ores and steel balls are elevated to a certain height by lining board, and fall down because of gravity. Ores are gradually crushed under the influence of impact and grinding. Crushed ores are discharged out of the cylinder. Qualified products go through the spiral classifier while coarse sand was sent back to the ball mill by the joint feeder. Through material hollow shaft spiral the material is sent to the first mill chamber, in which there are ladder liner or corrugated linings, with steel balls of different specifications in it. When cylinder rotating, centrifugal force will produce steel ball fall down from a certain height, thus impacting and grinding the materials. After coarse grinding in the first chamber, materials enter into the second chamber through a single diaphragm. In this warehouse with flat lining board and steel balls in it, materials are further grinded. Working Principle of Wet Ball MillBall mill is a grinding equipment than can work continuously without stop. Wet ball mill is a horizontal cylinder rotary device with the outer gear rotating and two warehouses wet. The feeder continuously and evenly transmit ores into the ball mill. Grinded materials keep flowing out of the ball mill. http://www.china-xingbang.com/2.htmlBall MillRotary KilnJaw CrusherStone CrusherContact person: Luz LiuTel: 0086-371-67996871 0086-371-67996872E-mail: [email protected]: [email protected]: http://www.china-xingbang.com/

Raw

Weaving

Fine Weave Textile is the leading Indian fabric manufacturers of home and industrial textiles. It offers quality Yarn, bed linen, bed covers,bedspreads and all type of bedding fabrics

Raw

Others

Recently we have started prodution of Cotton Combed Slub Yarns in Count Range from Ne 24/1 to Ne 30/1.Kindly advice your interest. Thanks & Regards Sohil Parikh Executive ( International Business) www.ambujagroup.com

Raw

Weaving

• Ne 5.5/1 – 20/1 carded • Ne 10/1 – 40/1 combed
